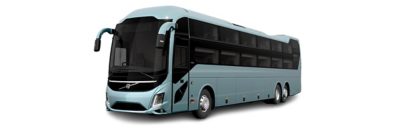

Volvo 9600 Specifications

Dimensions and weights

Model

12.2m

13.5m

15m


Length(mm)122001350015000
Height(mm)38003800 (Seater) & 4000 (Sleeper)3800 (Seater) and 4000 (Sleeper)
Width(mm)260026002600
Wheelbase(mm)620072008350
Permitted GVW*180001900022200



*GVW: Gross Vehicle Weight



Powertrain

 12.2 m13.5 m15 m
Emission standardBS VI BS VIBS VI
Diesel EngineD8K6300, Common rail direct injectionDBK6300, Common rail direct injectionDBK6350, Common rail direct injection
Output(KW)221 (296 hp) @ 2200 rpm221 (296 hp) @ 2200 rpm

258 (346hp) @ 2200 rpm
Torque(Nm)1200 at 1200- 1600 rpm1200 at 1200- 1600 rpm
1350 at 1200-1600 rpm
TransmissionSynchromesh manual gearbox (6F & 1R)*Synchromesh manual gearbox (6F & 1R)*I-Shift automated manual gearbox (12F & 4R}*
 *Available with integrated hydrodynamic retarder


Fuel tanks

Tanks

12.2m

13.5m

15m
Diesel (L)450540540
AdBlue (L)505050

Luggage Capacity

 12.2 m13.5 m15 m
Seater (m3)11.113.615.1
Sleeper (m3) 7.68.5

Axles,suspension and steering

 12.2m13.5m15m
Front axleRigid and steerable Rigid and steerableRigid and steerable
Rear axleSingle reduction hypoid axleSingle reduction hypoid axleSingle reduction hypoid axle
Tag axleNANARigid and steerable
SuspensionFull air suspension with electronic controlFull air suspension with electronic controlFull air suspension with electronic control
Power steeringHydraulic power assisted steeringHydraulic power assisted steeringHydraulic power assisted steering
Tyres295/ 80 R 22.5, 18 PR,Tubeless radial295/ 80 R 22.5, 18 PR,Tubeless radial295/ 80 R 22.5, 18 PR,Tubeless radial

Passenger Capacity



12.2m

13.5m

15m

Seating Capacity (2X2)43+1(D)+1(CD)47+1(D)+1(CD)55+1(D)+1(CD)
 Without calf supportWithout calf supportWithout calf support

 39+ 1(D)+1(CD)43+ 1(D)+ 1(CD)51+1(D)+1(CD)
 With calf supportwith calf supportwith calf support

Sleeper berth capacity (2X1) 34 berth +1(D)+1(CD)40 berth +1(D)+ 1(CD)
  (2 levels)(2 levels)
   D:Driver; CD: Co-driver

Passenger experience

ModelSeaterSleeper
 Theatre type saloonFlat floor saloon
 Seating layout in 2x2 configuration Berths layout in 2x1 configuration
 Premium push back seatsSpacious and comfortable berths with back support and privacy curtains
 Individual USB charging portsIndividual USB charging ports
 Individual AC louvers and reading lightsIndividual AC louvers and reading lights
 Elegant trim and harmonic colour schemesChildren friendly soft-touch handles, ladders and restrainers without any metal surface exposed

Brakes

Brake systemsElectronic Vehicle Stability Control (EVSC)
 Electronic Breaking System (EBS)
 Anti-lock Braking System (ABS)
